Economic Flat Glass Tempering Furnace Blower System Automatic Control

LUOYANG AOTU MACHINERY CO.,LTD.
Contact Now

Economic Flat Glass Tempering Furnace Blower System Automatic Control

Brand Name : AUTO

Model Number : AT-TA 2442 (4 mm)

Certification : CE, 3C, UL, ISO

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 SETS/YEAR

Delivery Time : 2-4 MONTHS

Packaging Details : Export Safety Package

Max.Flat Glass Size : 2440*4200 mm

Glass Thickness Range : 4-19 mm

Warranty : 1 YEAR

After-sales Service Provided : Free engineers Field installation, commissioning and training, Field maintenance and repair service

Application : Architecture, Furniture, Automobile, Household Appliance, Solar Energy

Min glass size : 100*300 mm

Productivity : 17-21 (loads/h)

Support Customized Size : Yes

Contact Now

Economic Flat Glass Tempering Oven 2440*4200 mm (4-19 mm)

Product Description:

Economic Flat Glass Tempering Oven is a new generation tempering machine to temper Flat type glass. Compared with same kind of product in domestic and abroad, this machine has some advantages like reasonable technical technology, powerful software function of system control, high reliability, superior insulation function, low production consume, automatic control by computer, and high capacity etc. especially for high-grade glass products, such as Low-E glass and coated glass.

Machine Structure

Economic Flat Glass Tempering Oven is consisted of Loading section, Heating section, Flat Tempering section, Unloading section, Blower System and Control System. The glass sheet enters into heating oven furnace from loading table, and tempered & cooled in flat quench & cooling section after heating. It goes to unloading table to finish process.

Supply scope:


1. Loading table 2. Heating Section 3. Flat Tempering/Quenching section
4. Unloading table 5. Control System 6. Spare parts 7.Free door-door installation and debugging

Main Parameters

Type Max.Glass Size(mm) Min.Glass Size(mm) Glass Thickness(mm) Productivity(M2/H) Installed Capacity(KVA)
AT-TA1020 1000*2000 100*250 3-19 80 300
AT-TA2030 2000*3000 100*250 3-19 108 400
AT-TA2036 2000*3660 100*250 3-19 131 500
AT-TA2436 2440*3660 100*300 3-19 160 630
AT-TA2442 2440*4200 100*300 3-19 186 630
AT-TA2450 2440*5000 100*300 3-19 222 800
AT-TA2460 2440*6000 100*300 3-19 266 1000

AT Series Economic Flat Glass Tempering Oven GUARANTEE/ WARRANTY :

The quality guarantee period for all the machine is 1 year, any damage on the electric parts during the quality guarantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors).
And the buyer will have our forever After- sales service in the future.

AT Series Economic Flat Glass Tempering Oven Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

AT Series Economic Flat Glass Tempering Oven After-sales Service

1. Free Training Help Customers Use the Tempering Furnace

2. Free door-to-door Installation and Debugging

3. Free door-to-door Service Twice a year

4. Free Long-life Technical Support

Detailed Images:

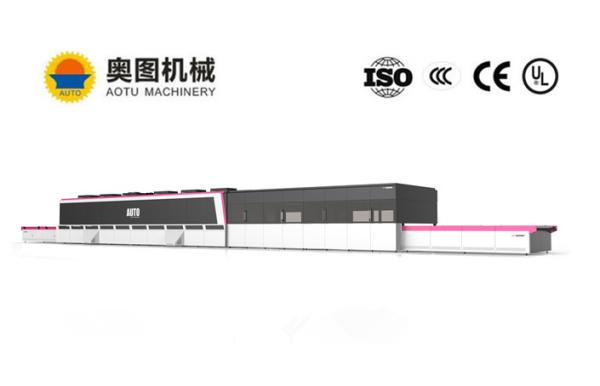

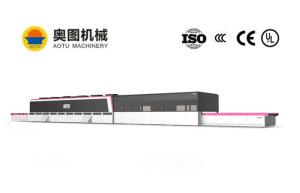

Economic Flat Glass Tempering Furnace Blower System Automatic Control
